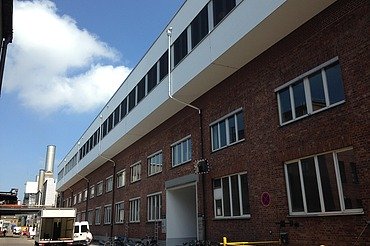

Photo of a multi-storey building. Wooden extension with white façade and flat roof.
Photo of a multi-storey building. Wooden extension with white façade and flat roof. © ZÜBLIN Timber

Client:
Ed. Züblin AG - Bayern Systembau division, Munich

Completion of timber construction:
2015

Location:
Augsburg

Back to Projects

Extension MAN, Augsburg

Addition of storeys to an existing building where only the external walls are load-bearing. Floor and roof elements with free spans over 12 m. Enlargement of the floor area of the extension using cantilevered floor elements, whereby the construction elements are classified as K260 and F60. Prefabrication of the floor, wall and roof elements including cladding with Rigidur fire protection boards in K2-60 and insulation. The absence of columns ensures maximum flexibility in the use of the space as an office.

Impressions

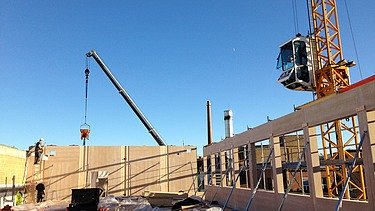

  • Photo of an assembly of wooden elements. Wooden extension. © ZÜBLIN Timber
    Photo of an assembly of wooden elements. Wooden extension. © ZÜBLIN Timber

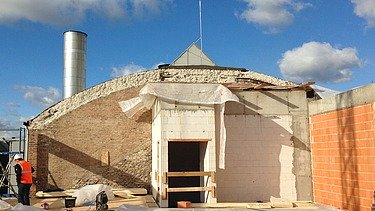

  • Photo of a building site. You can see the old stone core of the building on which wood is being added. © ZÜBLIN Timber
    Photo of a building site. You can see the old stone core of the building on which wood is being added. © ZÜBLIN Timber

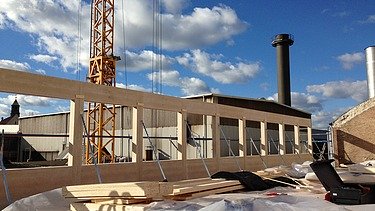

  • Photo of an assembly of wooden elements. Wooden extension. © ZÜBLIN Timber
    Photo of an assembly of wooden elements. Wooden extension. © ZÜBLIN Timber

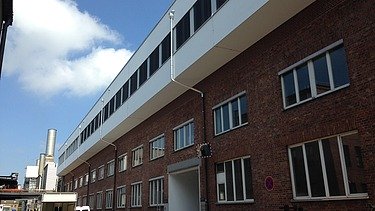

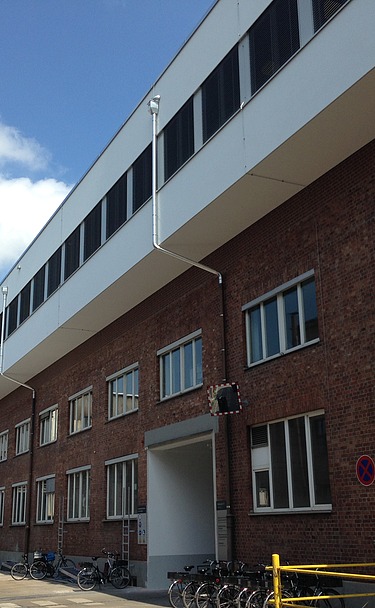

  • Photo of a multi-storey building. Wooden extension with white façade and flat roof. © ZÜBLIN Timber
    Photo of a multi-storey building. Wooden extension with white façade and flat roof. © ZÜBLIN Timber

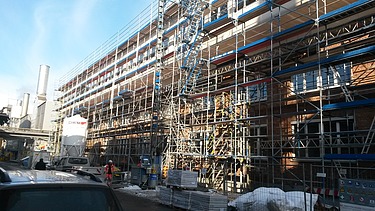

  • Photo of a scaffolded, multi-storey building. You can see a wooden extension. © ZÜBLIN Timber
    Photo of a scaffolded, multi-storey building. You can see a wooden extension. © ZÜBLIN Timber
  • Our services
    • Statics, planning
    • Production and assembly of the wooden elements
  • Products used

    Hollow box floor elements, timber frame construction external walls, LENO® cross laminated timber internal walls, rib and roof elements and parapet elements

  • Architectural office

    pbr Planungsbüro Rohling AG, Osnabrück

  • Client

    Ed. Züblin AG - Bavaria System Construction Division, Munich
