Rib elements and box elements

High performance for your customized load-bearing structure

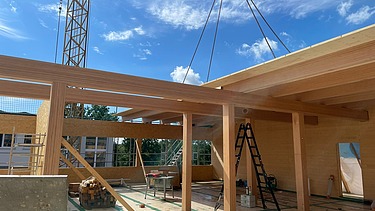

Photo of a large wooden rib element on a building site, blue sky © Lippstock Wolf Architekten, Berlin
© Lippstock Wolf Architekten, Berlin

Spans of up to 20 meters without load-bearing interior walls, wide-span ceilings without columns, or wide roof overhangs - with our products, structural challenges can be met cost-effectively and reliably. The load-bearing structures of rib elements consist of ribs positioned at a distance from each other, which are connected as load-bearing chords via an upper planking of laminated veneer lumber or cross laminated timber (CLT/LENO®).
If a smooth soffit is required, if elements have to be designed with insulation or with a corresponding fire protection requirement, then box elements are the right choice.

  • Requirements are different! We combine our composite elements sensibly. Combinations with LENO®  cross laminated timber (CLT), glulam (GLT), laminated veneer lumber (LVL, BauBuche) or concrete composite - we are equipped to meet your requirements!

    Daniel Kreissig
    Technical Sales Building Systems and International Projects

VARIANTS AT A GLANCE

Ribbed elements

They consist of spaced ribs, which are connected by an upper planking of panel materials as a static load-bearing chord.

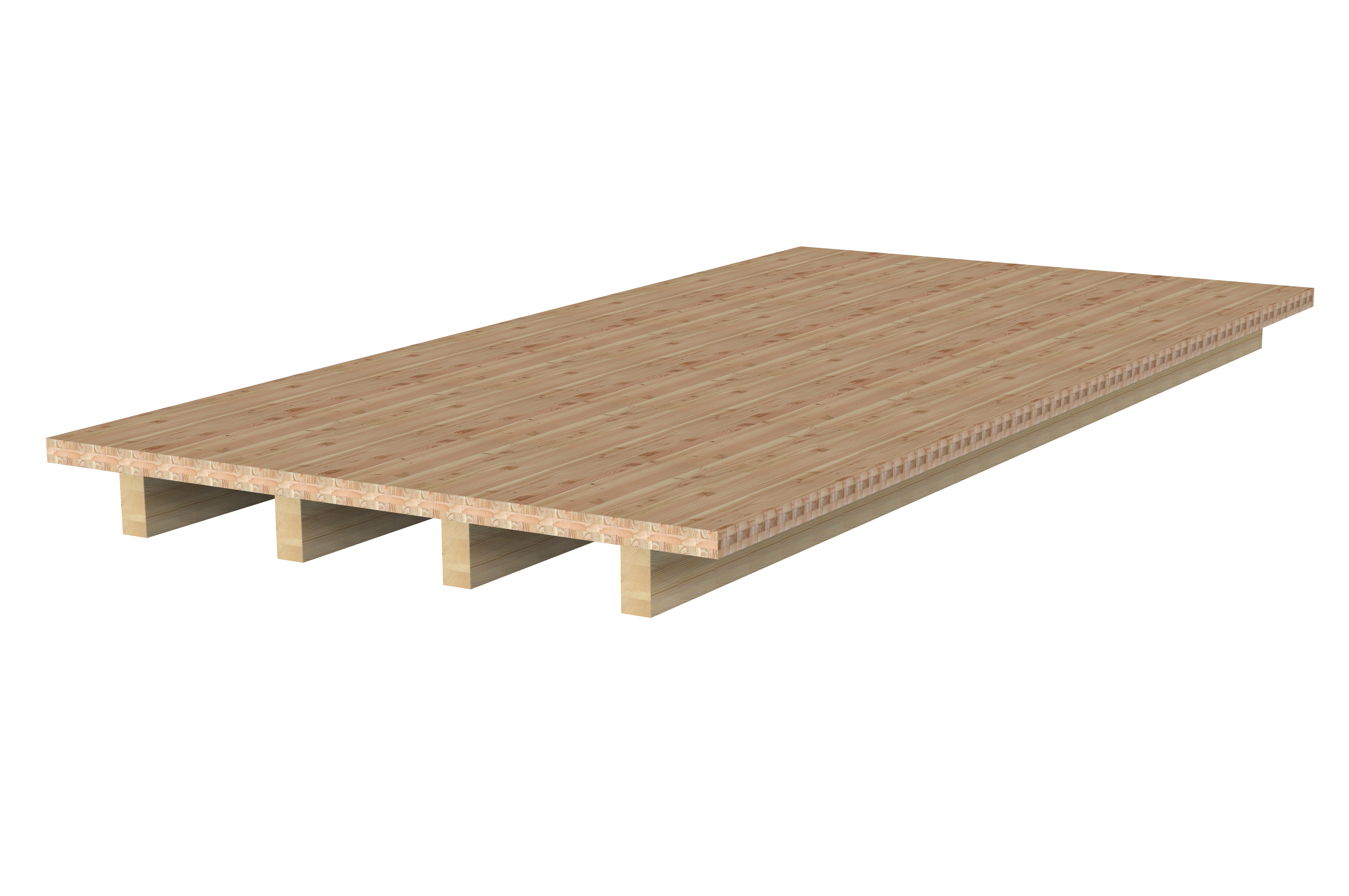

  • Rendering of a BSP rib element.
    Rendering of a BSP rib element. © ZÜBLIN Timber
  • Rendering of an LVL rib element.
    Rendering of an LVL rib element. © ZÜBLIN Timber

Glulam (glulam/GLT) as ribs combined with cross laminated timber (CLT) LENO® as cover panel

  • Individual element dimensions up to b = 3 m and l = 20 m
  • Individual surface design possible

Laminated veneer lumber (LVL) for ribs and top panel

  • Individual element dimensions up to b = 2.5 m and l = 24 m
  • Individual use of spruce or beech laminated veneer lumber
  • Individual surface design possible

Box elements

The use of panel materials as the bottom and top chord increases the fire resistance and load-bearing capacity of box elements.

  • Rendering of a BSP box element.
    Rendering of a BSP box element. © ZÜBLIN Timber

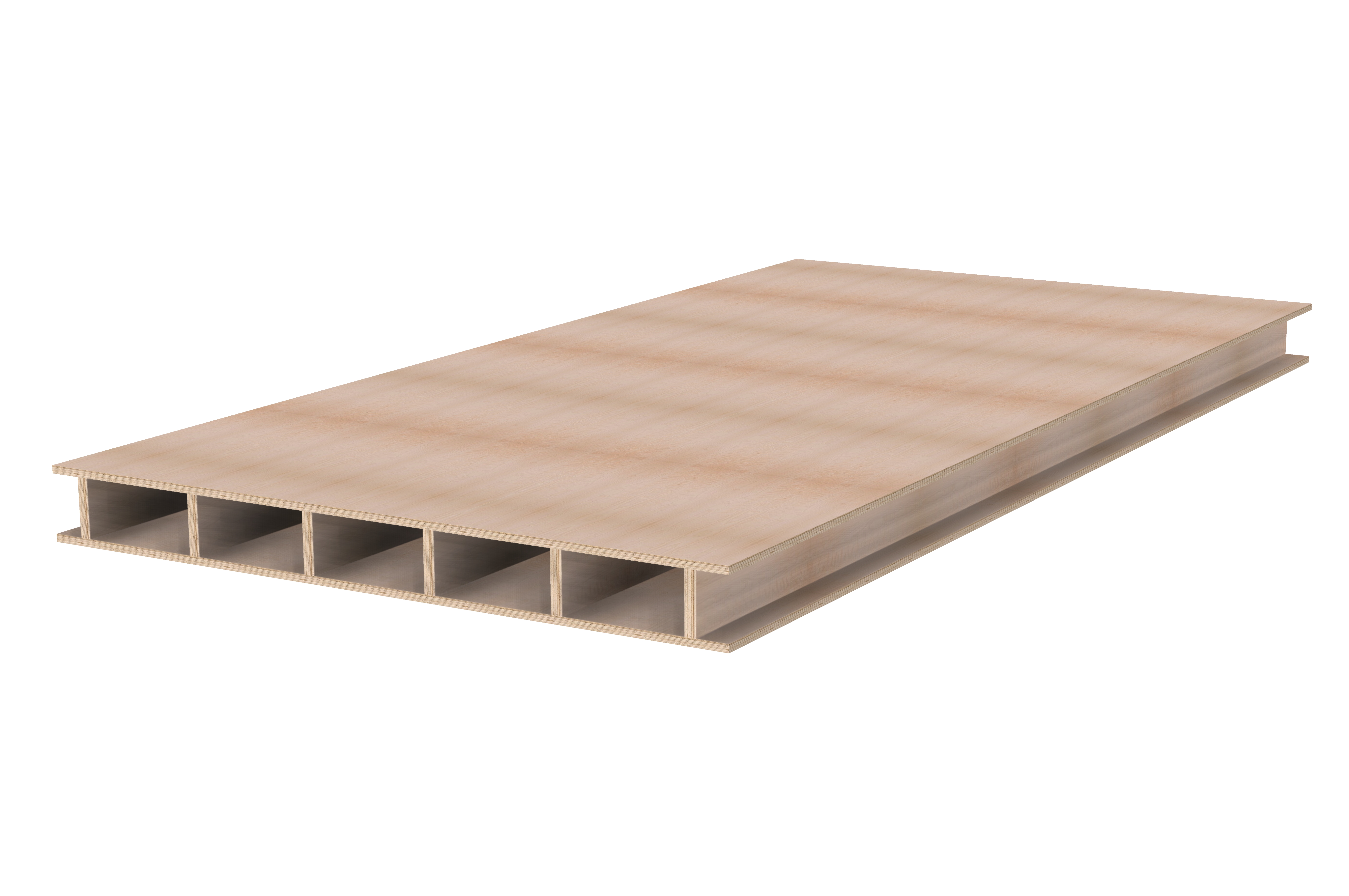

  • Rendering of an LVL box element.
    Rendering of an LVL box element. © ZÜBLIN Timber

Glulam (glulam/GLT) as a rib combined with cross laminated timber (glulam/CLT) LENO® as a base and top panel

  • Individual element dimensions up to b = 3 m and l = 20 m
  • Individual surface design possible

Laminated veneer lumber (LVL) for ribs and as a base and top board

  • Individual element dimensions up to b = 2.5 m and l = 24 m
  • Individual use of spruce or beech laminated veneer lumber
  • Individual surface design possible

Composite elements

Ready-to-install LENO® cross laminated timber cover panel prepared for on-site bonding with common HBV variants.

Image of a wood-concrete composite element with Kerve © Technologiezentrum (TTZ)

More about wood-concrete composite elements

  • Ribs and box elements are particularly suitable for wide-span ceilings and roofs and score points with their high load-bearing capacity, low dead weight and material efficiency.

    Martin Schimpf
    Technical Sales Building Systems and International Projects
Photo of a rib element on the crane in the ZÜBLIN Timber production hall. You can also see box elements. © ZÜBLIN Timber

Your advantages with ribbed and box elements:

  • Solution for medium to long spans of up to 20 m
  • When designed as box elements, fulfillment of fire protection requirements
  • High dimensional stability thanks to the materials used
  • Laying capacity of up to 1,000 m2 per day thanks to large-format elements
  • Immediate accessibility of the elements increases construction site safety
  • No design-related drying or waiting times, ensuring rapid construction progress

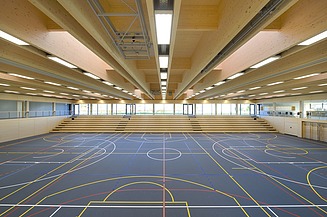

Photo of a gymnasium with ribbed wooden ceiling. Triple sports hall in Stadtbergen © Peters Fotodesign

Our service to you:

  • Extensive reference objects
  • Planning support and pre-dimensioning by experienced specialists
  • High flexibility due to requirement-specific and individual use of different building products such as glulam, CLT, LVL, concrete, etc.
  • High material efficiency as ribs or box element
  • High flexibility thanks to individual element dimensions up to b = 3 m and l = 20 m (depending on the material selected)
  • Customizable and visually appealing soffits thanks to available visible surfaces
  • Ready-to-assemble elements with lifting device

Ribbed and box elements in use

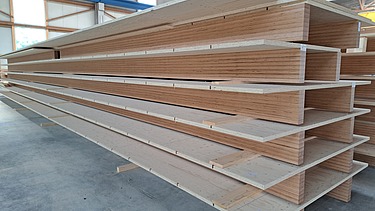

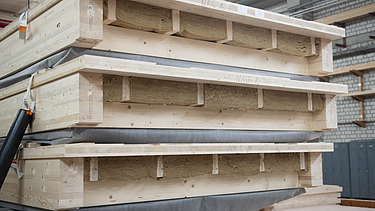

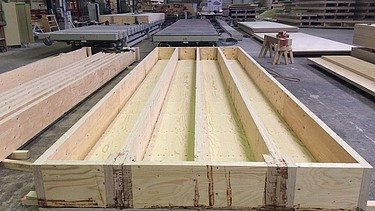

  • Photo of a stack of ribbed elements in the ZÜBLIN Timber production hall. © ZÜBLIN Timber
    Photo of a stack of ribbed elements in the ZÜBLIN Timber production hall. © ZÜBLIN Timber
  • Photo of a rib element on the crane in the ZÜBLIN Timber production hall. Box elements can also be seen in the background. © ZÜBLIN Timber
    Photo of a rib element on the crane in the ZÜBLIN Timber production hall. Box elements can also be seen in the background. © ZÜBLIN Timber

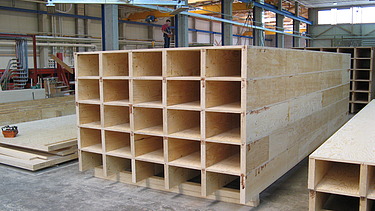

  • Photo of box elements in the ZÜBLIN Timber production hall. © ZÜBLIN Timber
    Photo of box elements in the ZÜBLIN Timber production hall. © ZÜBLIN Timber

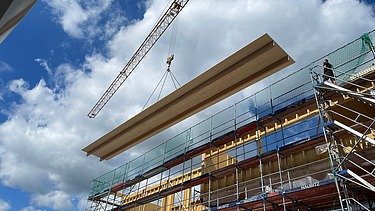

  • Photo of a timber construction site in Berlin. You can see an overlong ribbed element on the crane. © Zimmerei Haberland
    Photo of a timber construction site in Berlin. You can see an overlong ribbed element on the crane. © Zimmerei Haberland

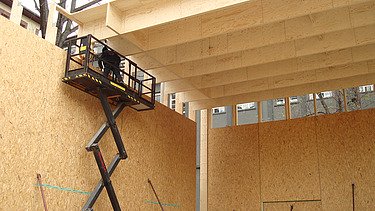

  • Photo of a timber construction site in Berlin. You can see the assembly of the ribbed elements. © Zimmerei Haberland
    Photo of a timber construction site in Berlin. You can see the assembly of the ribbed elements. © Zimmerei Haberland

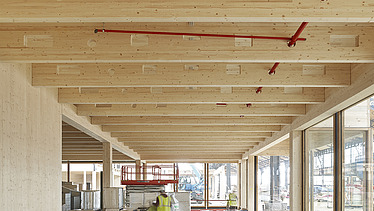

  • Photo of an assembly of ribbed elements with LENO and BSH from ZÜBLIN Timber. © Achim Birnbaum
    Photo of an assembly of ribbed elements with LENO and BSH from ZÜBLIN Timber. © Achim Birnbaum
  • Photo of an assembly of ribbed elements from ZÜBLIN Timber. © ZÜBLIN Timber
    Photo of an assembly of ribbed elements from ZÜBLIN Timber. © ZÜBLIN Timber

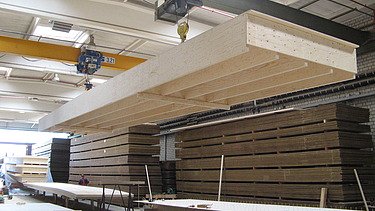

  • Photo of a large rib element on the crane in the ZÜBLIN Timber production hall. © ZÜBLIN Timber
    Photo of a large rib element on the crane in the ZÜBLIN Timber production hall. © ZÜBLIN Timber
  • Photo of a ribbed element in the ZÜBLIN Timber production hall. © ZÜBLIN Timber
    Photo of a ribbed element in the ZÜBLIN Timber production hall. © ZÜBLIN Timber

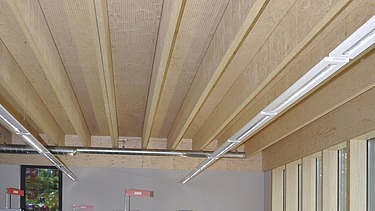

  • Photo of a library from the inside. The focus is mainly on the ribbed wooden ceiling. © ZÜBLIN Timber
    Photo of a library from the inside. The focus is mainly on the ribbed wooden ceiling. © ZÜBLIN Timber

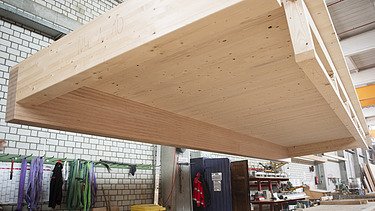

  • Photo of a floating rib element on the crane in the ZÜBLIN Timber production hall. © ZÜBLIN Timber
    Photo of a floating rib element on the crane in the ZÜBLIN Timber production hall. © ZÜBLIN Timber

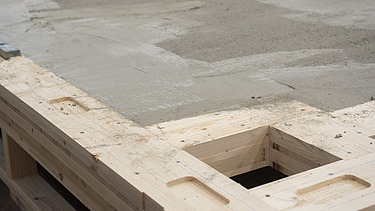

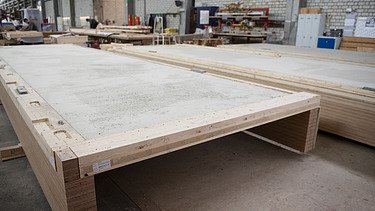

  • Photo of a horizontal rib element with a layer of concrete in the ZÜBLIN Timber production hall. © ZÜBLIN Timber
    Photo of a horizontal rib element with a layer of concrete in the ZÜBLIN Timber production hall. © ZÜBLIN Timber
  • Photo of wooden box elements in the ZÜBLIN Timber production hall. © ZÜBLIN Timber
    Photo of wooden box elements in the ZÜBLIN Timber production hall. © ZÜBLIN Timber

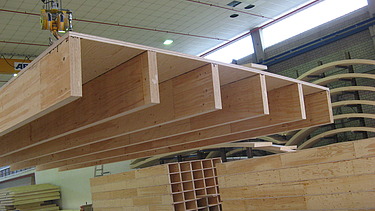

  • Photo of a horizontal rib element in the ZÜBLIN Timber production hall. © ZÜBLIN Timber
    Photo of a horizontal rib element in the ZÜBLIN Timber production hall. © ZÜBLIN Timber
